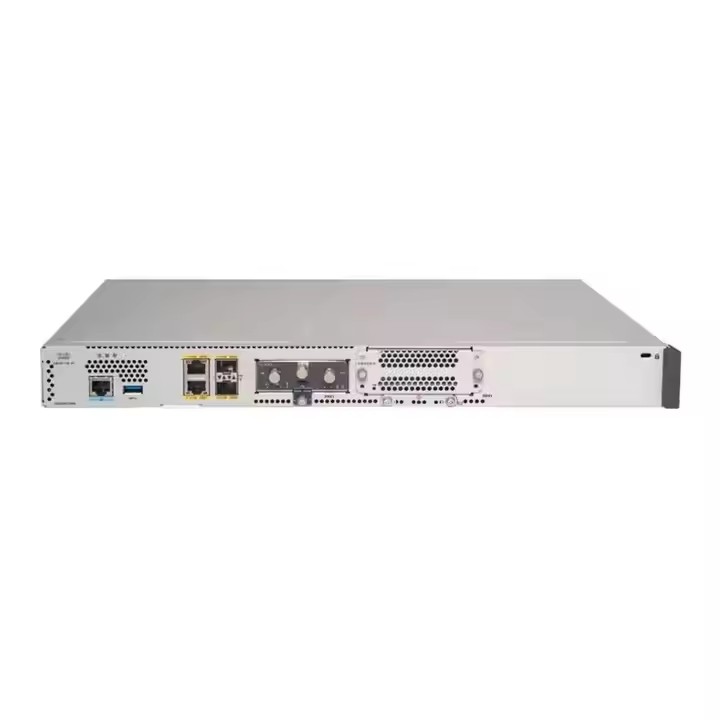

Cisco Enterprise Router Cisco Catalyst 8200L with 1-NIM slot and 4x1G WAN ports

Product No.:C8200L-1N-4T

Product Price:$860-$956

Product Description:

C8200L-1N-4T Specification
Description	C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
Multicore processors	Intel x86 CPU with 4 GB memory default
Embedded IPsec VPN hardware acceleration	up to 500 Mbps IPsec traffic
SD-WAN overlay tunnels scale	1500
Integrated Gigabit Ethernet ports	4 built-in Ethernet WAN ports 2 SFP Ethernet ports, 2 RJ45 ports
Flash memory support	8-GB flash
Power supply	AC power supply
Modularity and form factor	1-Rack Unit (1RU) form factor Supports NIM and Pluggable Interface Module (PIM) slots
1G port density	4
Slots	1 NIM 1 PIM
DRAM	4 GB
Storage (M.2 SSD) default	16 GB
IPv4 forwarding throughput (1400 bytes)	Up to 3.8 Gbps
IPsec throughput (1400 bytes, clear text**)	Up to 500 Mbps
Number of IPsec static virtual tunnel interface (SVTI) tunnels	1500
Number of access control lists (ACLs) per system	4000
Number of IPv4 access control entries (ACEs) per system	72,000
Number of IPv4 routes	800,000 with default 4 GB, up to 4M with 32 GB
Number of IPv6 routes	800,000 with default 4 GB, up to 4M with 32 GB
Number of queues	16,000
Number of Network Address Translation (NAT) sessions	600,000 with default 8 GB, up to 2M with 32 GB
Number of firewall sessions	512,000
Number of Virtual Route Forwarding (VRF) instances	2000
