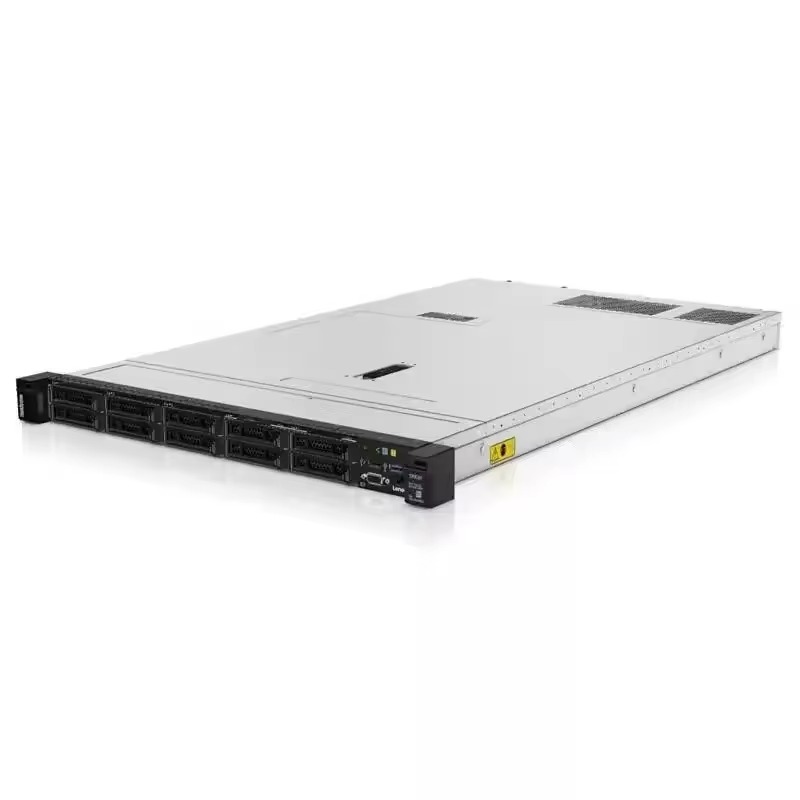

Model

SR630 v3

Drive Bay

8LFF/SFF/16SFF/24SFF/10LFF/14LFF

Processor

Up to two Third-generation Intel Xeon Processor Scalable processors

Form factor

2U rack-mount.

Memory

Up to 24 DIMM sockets

Storage
controller

12 Gb SAS/SATA RAID adapters with up to 8GB flash-backed cache
12 Gb SAS/SATA HBA (non-RAID)
Onboard PCIe NVMe (with Intel VROC NVMe RAID support for Intel SSDs and optionally
non-Intel SSDs)
NVMe Switch Adapters (with Intel VROC NVMe RAID support for Intel SSDs and
optionally non-Intel SSDs)

Network
interfaces

Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports:
2x or 4x 1 GbE RJ-45 ports (no 10/100 Mb support)
2x or 4x 10 GbE RJ-45 ports (no 10/100 Mb support)
2x or 4x 10 GbE SFP+ ports (no 10/100 Mb support)
Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45
connectors or single- or dual-port 25 GbE cards with SFP28 connectors.
1x RJ-45 10/100/1000 Mb Ethernet systems management port.

Power supply

Up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 - 240 V), or 1600 W (200 - 240 V)
High Efficiency Platinum AC power supplies, or 750 W (200 - 240 V) High Efficiency Titanium AC
power supplies. HVDC support (PRC only).

Dimensions

Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.)

Weight

Minimum configuration: 19 kg (41.9 lb), maximum: 32 kg (70.5 lb)

Warranty

3 years
